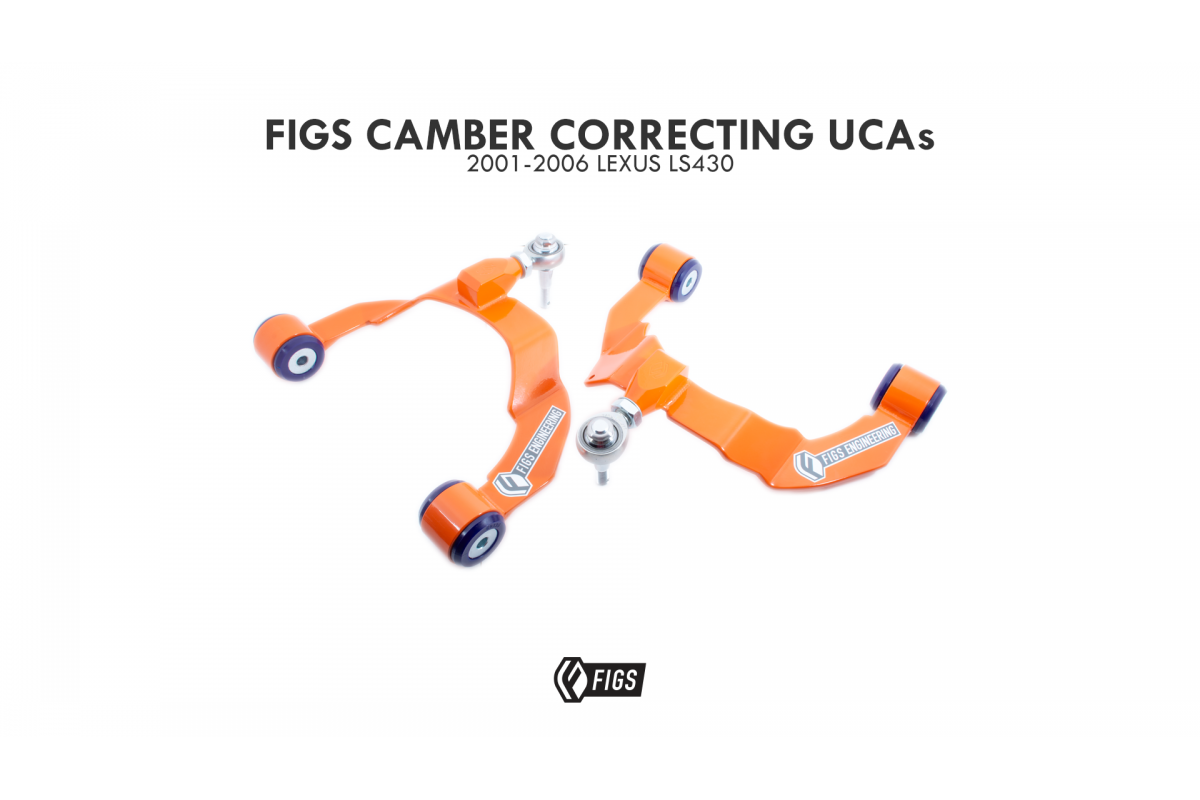

Designed to require minimal chassis fin modification, these arms are able correct several degrees of camber.

Camber Correcting arm lengths:
Centered bushings, ball joint threaded in: 9.0"
Centered bushings, ball joint threaded out 8 turns: 9.5

Features

• Steel plate construction with specific gusseting for structure and clearance.
• Centered Lifetime SuperPro inner bushings.
• Adjustable ball joint, to dial in camber or airbag clearance with this adjustment, dismount required.
• 3-piece precision ball joint and Stainless Steel taper stud.
• TIG welded
• Standard FIGS powder coat included.

Install:

• Remove factory arm and ball joint.
• Install new FIGS arm onto 2 body mounts, cycle arm without connecting to spindle to check for clearance.  Trim as required.
• Install ball joint into the spindle and torque nut to factory specifications.

We typically fabricate / powdercoat  / ship within two weeks depending on our overall shop load.  Please contact us with questions you might have or if have a tight turn around schedule.
