Single Tube
30 levels Adjustable Damping
Inverted Type
Shock-body Length Adjustable
Pillow Upper Mount
DUAL PVS
PNE Coating
Super Response Fluid (SRF)
Low Vibration Spring (LVS)
Upper Spring Retainer
Spec Change Available
Overhaul Available
2-year / 40,000 km Warranty
Features
Introduction of HIPREMAX R, designed for circuit driving with high-grip tires.
Features front camber adjustment mechanism adjustable up to approximately 4 degrees.
Convenient camber adjustment accessible from the tire house side despite the deep position of the upper part in the engine compartment.
Rear damping force adjustment achievable without removing shock absorbers.
Testing conducted with YOKOHAMA ADVAN A052 (265/35R18) tires.
Recommended damping dial settings for Fuji Speedway: 10 clicks for the front, 13 clicks for the rear.
Adjustment tip: To avoid understeer, adjust the rear towards toe-out direction for improved agility.
Versatile performance: Suitable for both track driving and street use.
| Spring rate [N/mm(kgf/mm)] | F=137(14) |
| R=196(20) | |
| Spring height (mm) | F=150 |
| R=170 | |
| Height at factory (mm) | F=-19(+16 - -37) |
| (Upper / Lower limit) | R=-24(0 - -79) |
| Upper mount | F=Pillow |
| R=Pillow | |
| Recommended range to change spring rate | F=±20(2) |
| [N/mm(kgf/mm] | R=±20(2) |
| Make Toyota | Model GR Corolla | Years 2023-2025 |

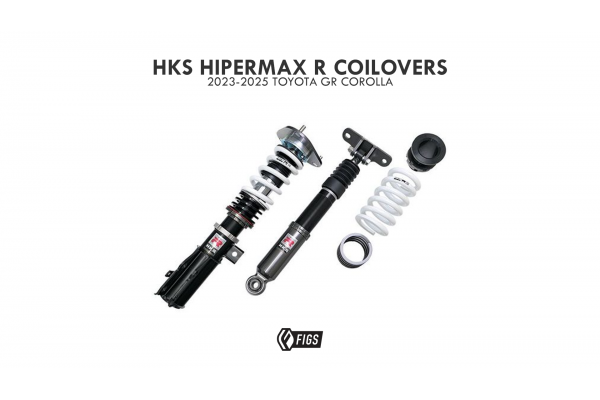

2023-2025 TOYOTA GR COROLLA HKS HIPERMAX R COILOVERS
- Brand: HKS
- Product Code: 80310-AT007
- Availability: In Stock
-
$3,300.00
