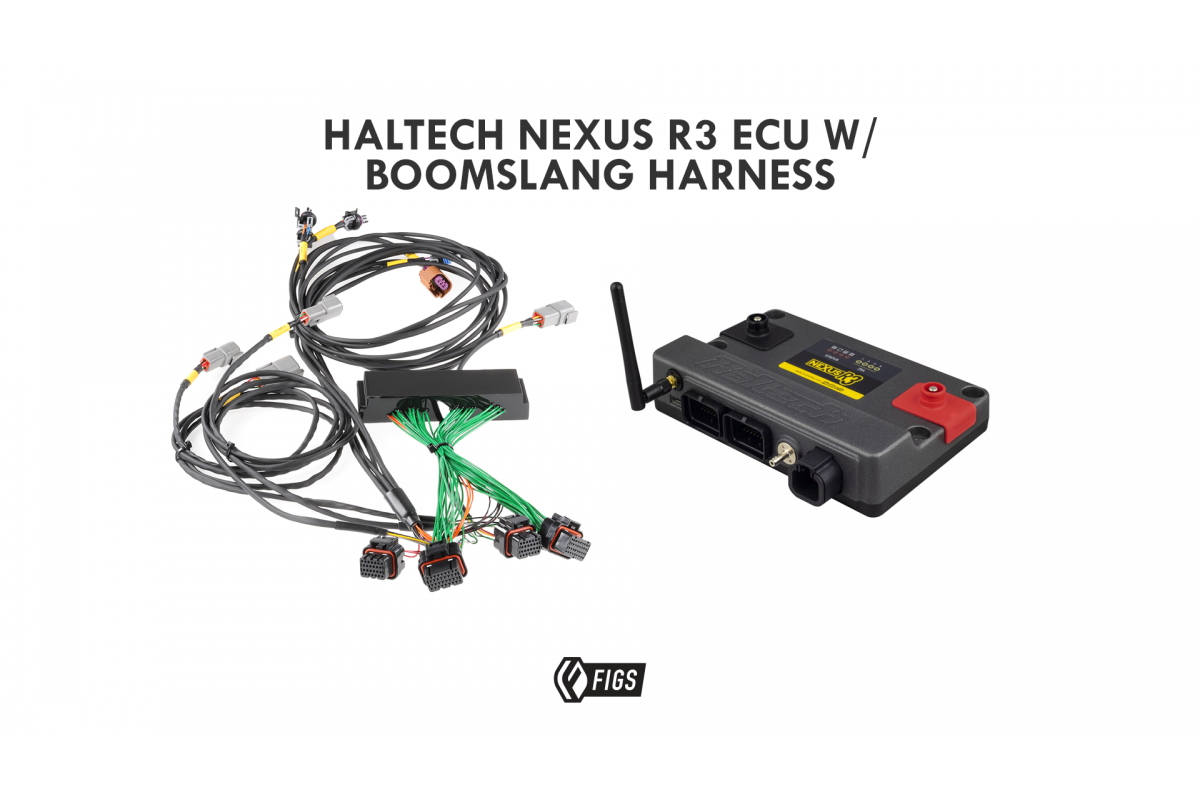

This setup features the Haltech Nexus R3 VCU, a cutting-edge vehicle control unit that offers advanced functionality and superior performance. When paired with the Boomslang Wiring Harness, which ensures effortless integration and reliable connectivity, this combination provides exceptional control and precision for a wide range of automotive applications. Ideal for enthusiasts seeking to elevate their vehicle's control systems with ease and dependability.
VCU OVERVIEW
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
| Toyota | Supra | 1993-1997 |
1993-1997 TOYOTA SUPRA 2JZ-GE Auto Haltech ECU R3 W/ Boomslang Wiring Harness
- Brand: FIGS Engineering
- Product Code: BF29214-R3-HT-193000
- Availability: In Stock
-
$3,317.40
Tags: 1993, 1994, 1995, 1996, 1997, TOYOTA, SUPRA, 2JZ-GE, Auto, Haltech, ECU, R3, W/, Boomslang, Wiring, Harness, BF29214-R3
