The 2JZ-GE manifold has been designed for guys wanting up to 900hp whilst keep as much response as possible.
Very easy access to all the nuts to reduce install time and cursing. All OEM fasteners can be used.
This
manifold will accept turbos using a 50-55mm V-band inlet from as little
at a G25-550 to G35-1050 to 6466 to 6870 all the way to a massive Xona
115-69 (1200hp) Turbos.
The wastegate port also uses our 44/45/46mm
flanges to make it easy to source a wastegate, but to also allow for
different designs, the manifold if you cut the standard flange off and
weld a 50mm flange on will flow the full amount of a 50mm wastegate.
The
manifold has been been designed to flow well above any other compact
designs on the market and has been proven to hold flawless boost control
using a 45mm wastegate paired with a Xona 76mm turbo at 27psi.
Specifications:
Material: SUS347 Stainless Steel Investment Cast Construction
Features:
V-Band Mounting System
Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible
High Horsepower, Maximum Response Design
Easy access to all the nuts to reduce install time, all OEM fasteners can be used.
Package Contents:
Exhaust Manifold
Precision, Garret, Tial turbo locator rings
Notes:
Example compatible turbos: Garrett G25 to G35 or Precision 6466 to 6870, and Xona 115-69 (1200hp)
Must use standard Rotation turbo
Designed in Australia with Lifetime Warranty*
At ARTEC we have revolutionized the turbo manifold industry with our
industry leading SUS347 stainless steel investment cast manifolds.
All
of our manifolds are engineered and designed from the ground up, CFD
simulated and, most importantly, tested in the real world to achieve
maximum flow and heat dispersion. The cast stainless construction allows
us to maximize flow and efficiency by having smooth merging angles and
eliminating any restrictions from tight radius bends or runners.
The
result is a truly optimized manifold with consistent performance,
resistant to heat pooling and cracking, plus a beautiful smooth exterior
finish.
Designed and tested in Australia, backed with a lifetime warranty.
| Lexus | IS300 | 2001-2005 |

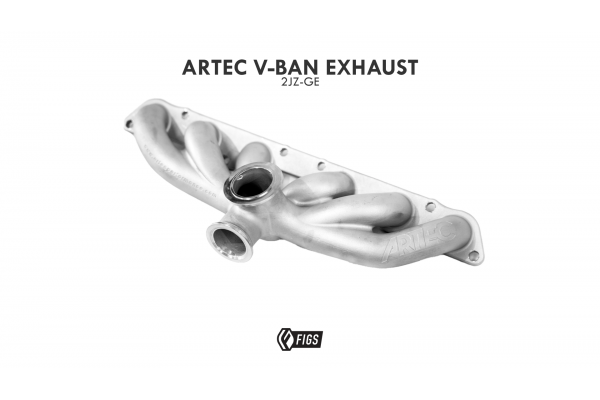

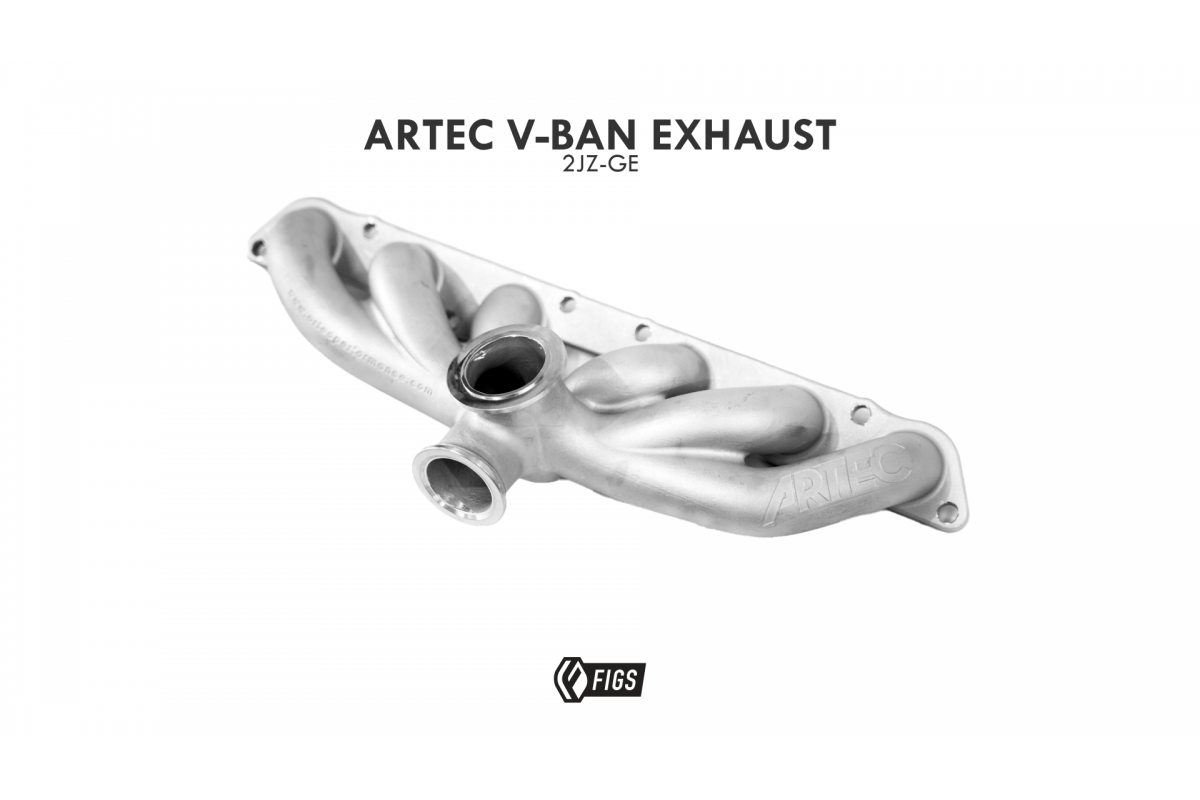

2001-2005 LEXUS IS300 ARTEC V-BAND EXHAUST MANIFOLD
- Brand: ARTEC
- Product Code: 2JZ-GE-VBAND-EX-1
- Availability: In Stock
-
$1,320.00
Tags: 2001, 2002, 2003, 2004, 2005, lexus, is300, 2jz-ge, 2jzge, ge, v-band, compact, exhaust, manifold, artec, 2JZ-GE-VBAND-EX
